Carbon Deoxidizer

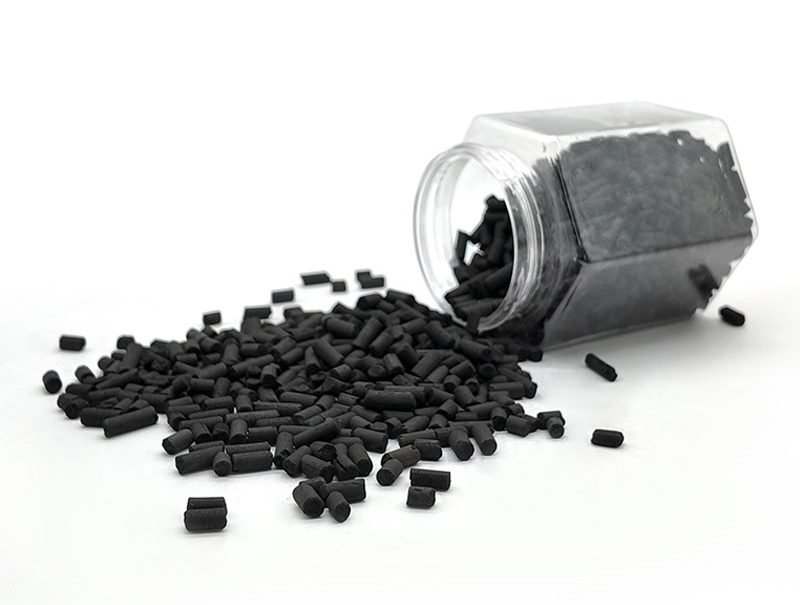

The carbon deoxidizer appears as dark-brown cylindrical pellets. Designed for the deoxygenation of inert gases, it directly removes trace amounts of oxygen, offering a deoxygenation capacity ten times that of conventional deoxygenation agents.
This catalyst does not require frequent regeneration, nor does it necessitate the injection of auxiliary hydrogen or other secondary gas components during operation, thereby avoiding the risk of reduced nitrogen purity associated with the introduction of additional gas additives.
Product Detail
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Why Choose Xintao Carbon Deoxidizer

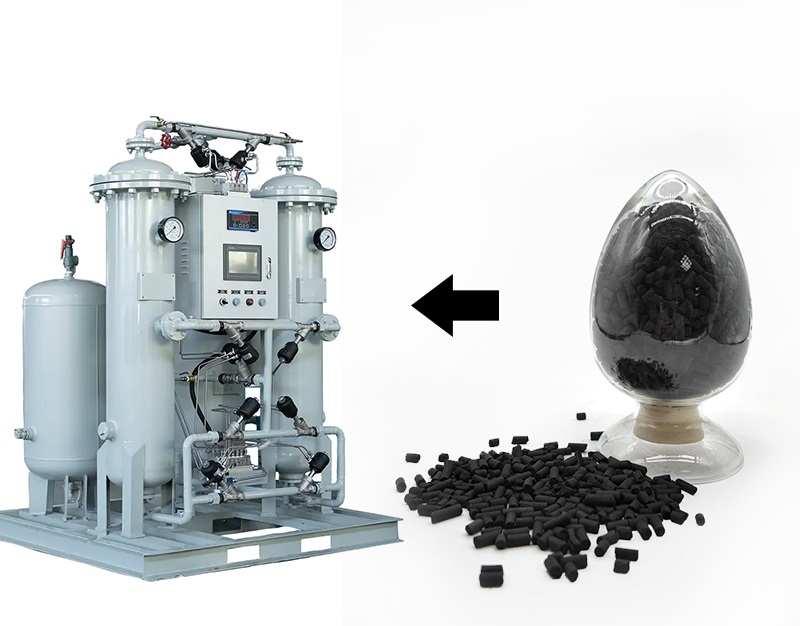

When used in conjunction with a PSA (Pressure Swing Adsorption) nitrogen generator, it can produce high-purity nitrogen with a purity of ≥99.9999%.
- High deoxygenation efficiency
- Large deoxygenation capacity
- Stable performance
- High Strength
- Ease of operation
- Long service life
- With nitrogen generator to produce high nitrogen purity
Technical Parameter
| Product | Carbon Deoxidizer |
| Appearance | Cylindrical Black-Brown Pellet |
| Other Name | Inert Gas Deoxygenation Catalyst |
| Diameter | 4mm |
| Size | 4-6mm |
| Bulk Density | 0.5t/m³ |
| Abrasion Resistance | ≥ 90% |
| Crushing Strength | ≥ 60N/piece |
| Water Content | ≤ 4% |
| Deoxygenation Capacity | 1.6Nm³/kg |
| Reaction Temperature | 220-380℃ |
| Space Velocity | 0-8000/h |
| Residual Oxygen Content | ≤1ppm |
- Downstream nitrogen purification for pressure swing adsorption (PSA) or membrane separation nitrogen generation systems; no hydrogen supply required.
- Retrofitting cryogenic high-purity nitrogen systems to reduce energy consumption or adding terminal purification.
- Direct removal of oxygen from inert gases such as nitrogen, argon, helium, and carbon dioxide.
- Used in fields such as semiconductor materials, metal heat treatment, the chemical industry, aerospace, chemical fibers, and magnetic materials.
FAQ
The capacity is large – typically ≥1.6 Nm³ of oxygen per kilogram of deoxidizer. Some products claim a 10% higher capacity than conventional carbon‑based deoxidizers.

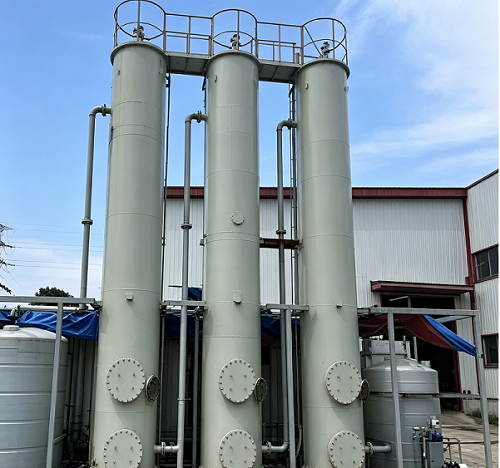

It is typically used as the key material in the purification section of the nitrogen generator. Raw nitrogen (ordinary nitrogen) passes through a combustion tower filled with 3093 deoxidizer under heated conditions, thereby producing high‑purity nitrogen.
The deoxygenation depth is excellent. The treated gas can have a residual oxygen content as low as <1 ppm, and some high‑quality products can achieve 0.5 ppm.
The principle is “combustion deoxygenation”: under the action of the catalyst (active component being noble metals like palladium), oxygen (O₂) in the gas reacts with carbon (C) in the deoxidizer at a relatively low temperature to selectively form carbon dioxide (CO₂). The reaction is: C + O₂ → CO₂.
25kg paper drums or 25kg paper bags.
